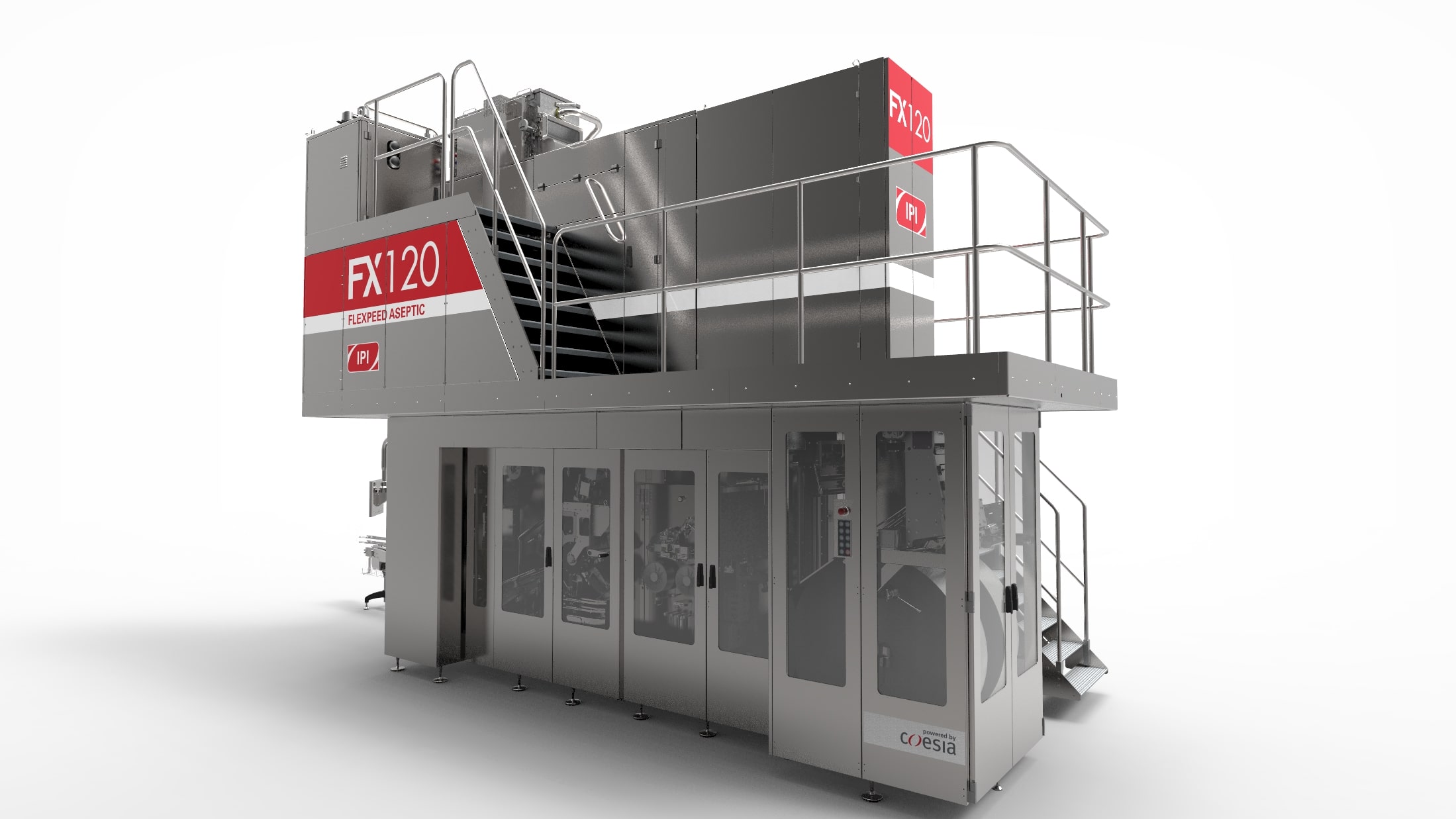

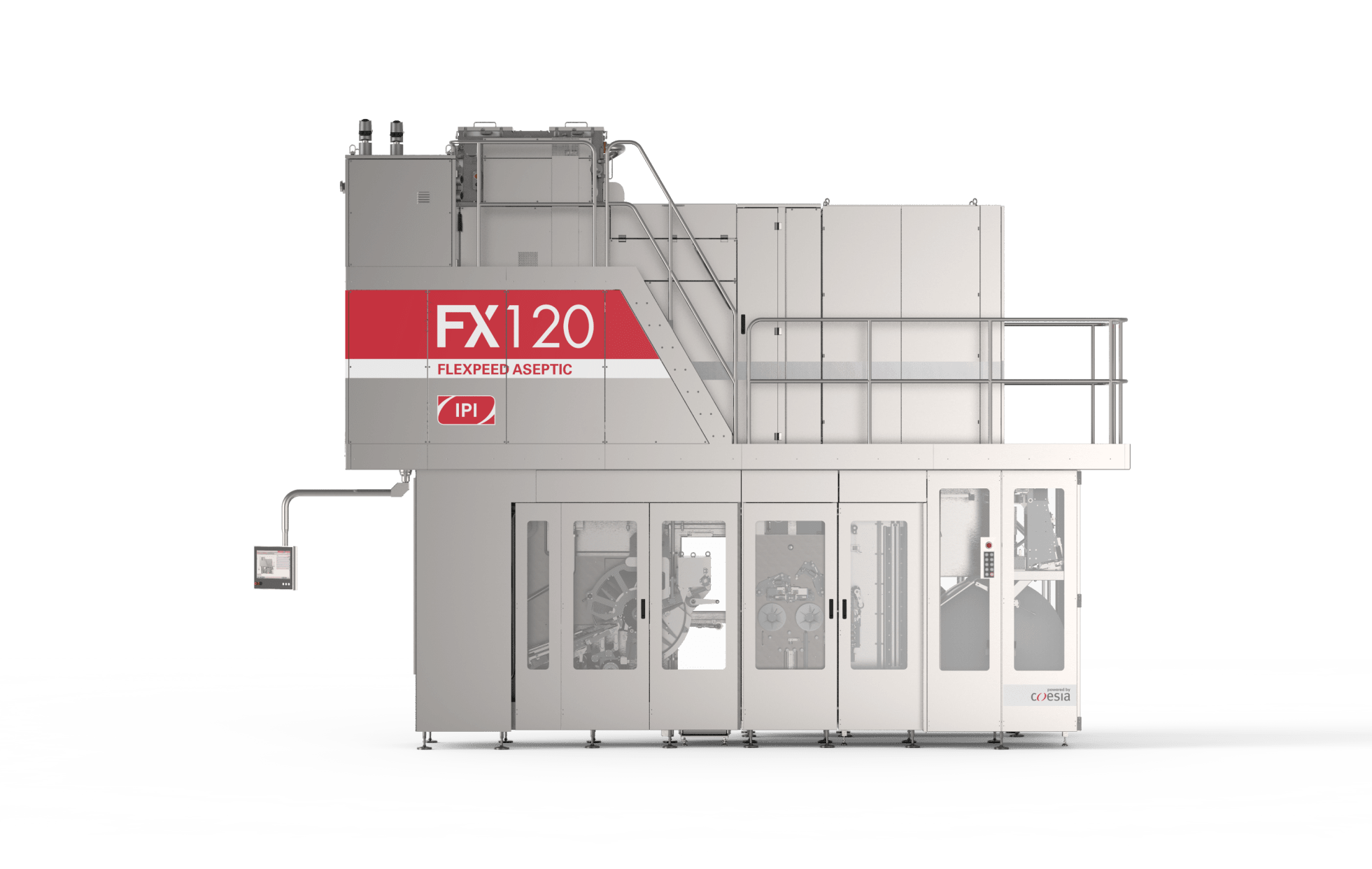

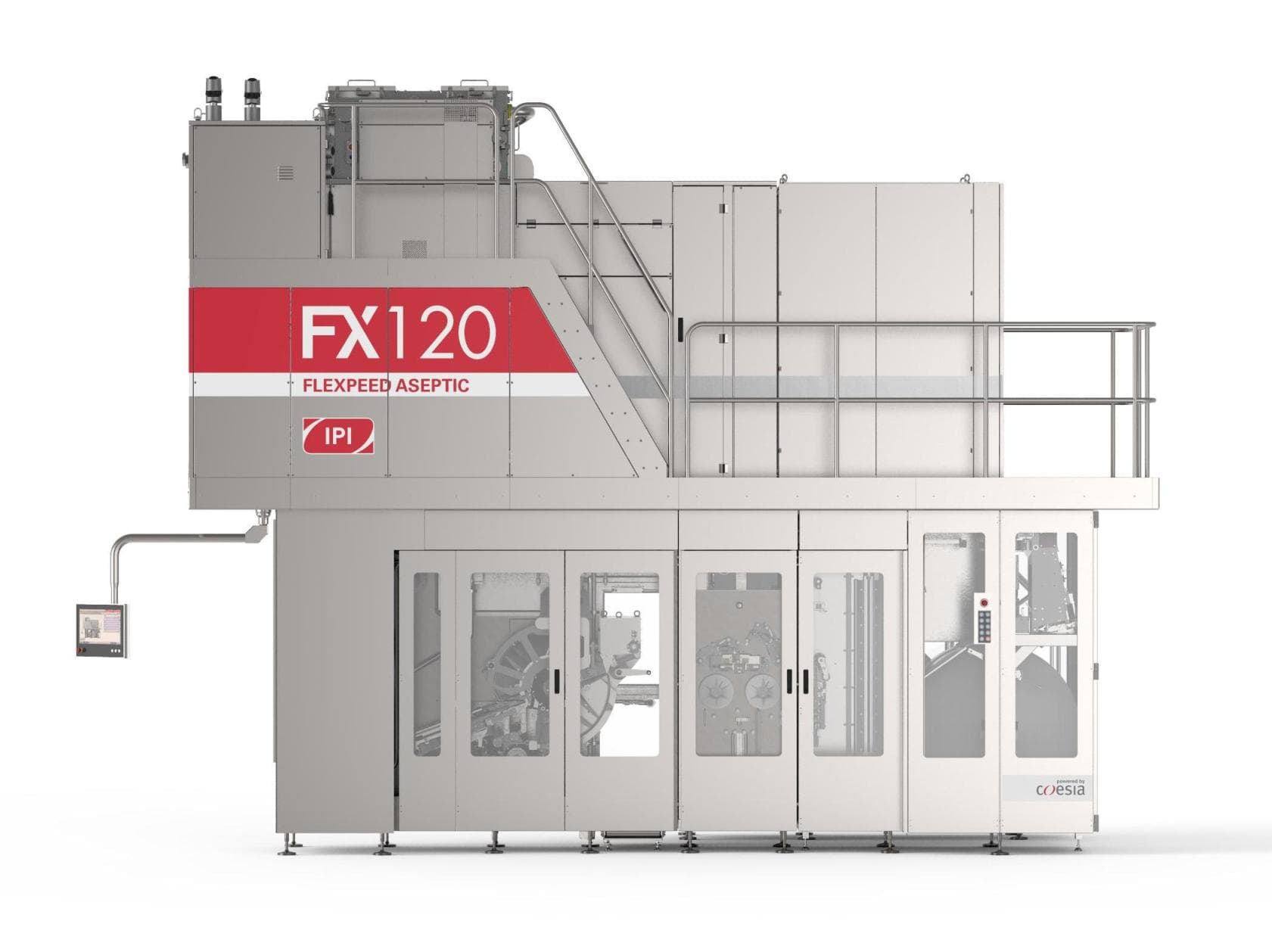

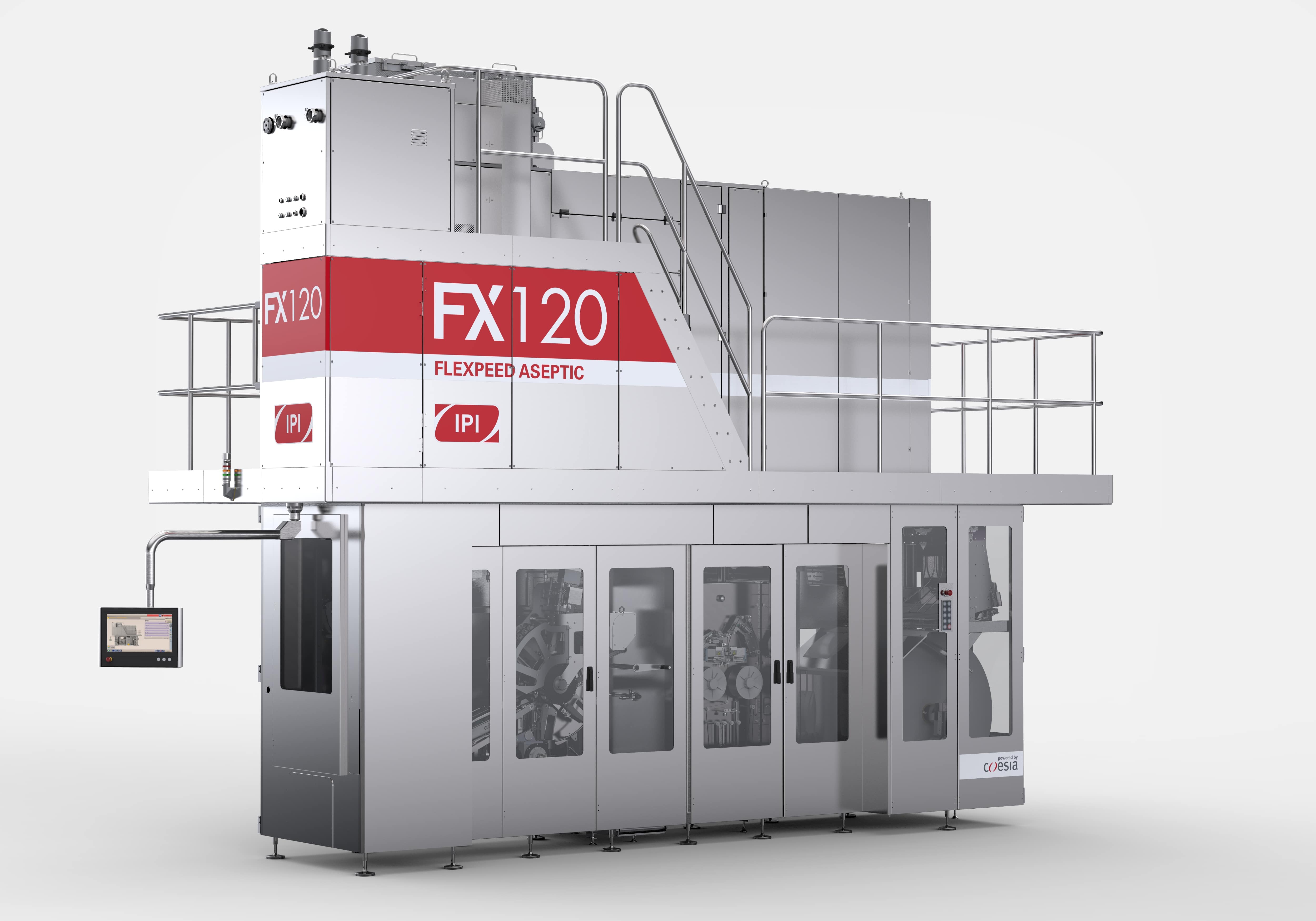

FX120

Aseptic cartons filling machine for beverages and liquid food products.

INFORMAZIONI BASE

  • TECNOLOGIA: Aseptic Filling
  • INDUSTRIA: Food, Dairy, Beverage
  • SEGMENTO: Ice Cream, Sauces & Condiments, Cheese, Yoghurt, Other Dairy, Dairy Alternatives, Soft Drinks & RTDs, Juice, Liquid Milk, Other Beverage, Wine & Spirits

Descrizione

FLEXPEED - FX120 is an aseptic machine for filling milk, juice, wine and tomato sauce and other liquid foods. FX120 is the fastest flexibile roll-fed aseptic filler worldwide, designed to guarantee flexibility to adapt to evolving consumer demands, brand strategies as well as production needs without limiting high-speed performance thanks to 1D fast and 3D change kits. Full mechanical transmission ensures simplicity and reliability.

INFORMAZIONI DETTAGLIATE

FOOTPRINT
Profondità macchina (mm)3600
Altezza macchina (mm)5300
Lunghezza macchina (mm)6450
Peso macchina (kg)12000
RANGE PRODOTTO
Volume max riempimento (ml)1000
Volume min riempimento (ml)100
PRESTAZIONI
Modalità operativaContinuous
Produzione max (ppm)12000
CARATTERISTICHE PACKAGING
Materiale packagingMultilayer reel
Packaging ShapeStandard, Slim, Square, Caliz

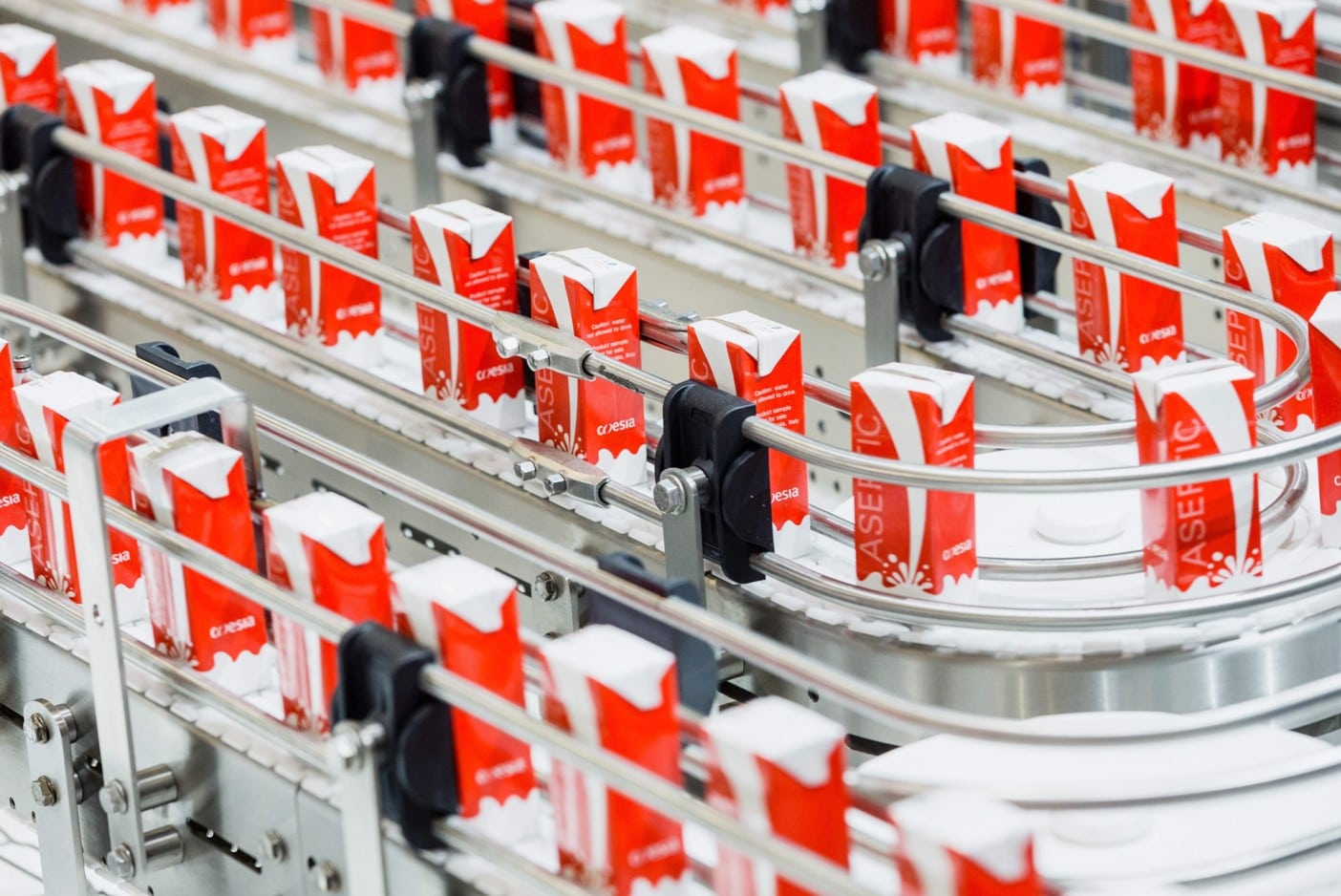

Tipo packagingAseptic liquid cartons
Chiusura packagingTwist cap, Straws
Proposta di valore
Proposta di valorePerformance
Attached Files
IPI_FX120_en.pdfDOWNLOAD
VIDEO
FX120 aseptic filling machineWATCH
